Container Dimensions
Standard Containers
General purpose containers — the most versatile in the ONS fleet. Built from high-strength steel, these containers withstand temperatures from −40°C to 70°C without compromising structural integrity or water-tightness.
⚠ In exceptional cases, specifications may differ. Cargo must conform to dimensional regulations of the host country. Contact your local ONS representative for exact payload limits.
Most PopularONS Logistics

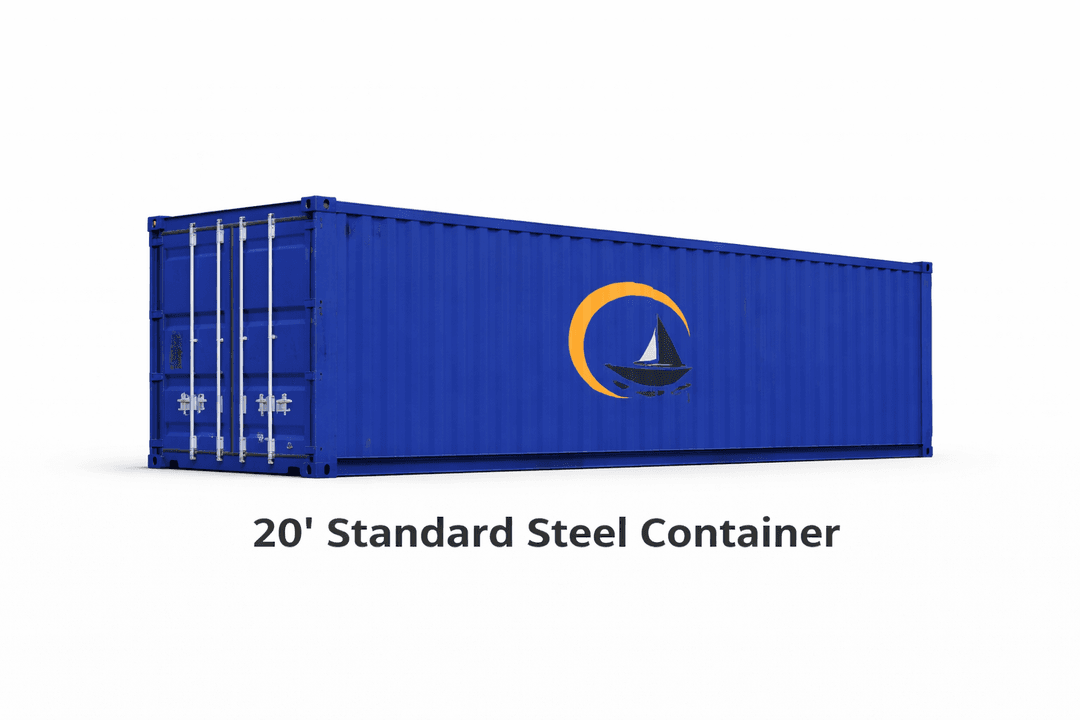

20' Standard Steel Container
Volume vs. max capacity
20' Standard Steel Container
20' standard steel containers are closed weather-tight containers suitable for any general cargo. ONS 20' containers have a payload capacity of up to 28,160 kg — close to many 40' containers. Especially suitable for high-density, heavyweight cargo. Garment hanger bars and forklift pockets are available on most units.
Up to 28,160 kg payload
33.2 m³ cubic capacity
Forklift pockets available
11+ garment hanger bars
Full Specifications
| Specification | Metric | Imperial (U.S.) |
|---|---|---|
| Capacity | ||
| Cubic Capacity | 33.2 m³ | 1,170 cu ft |
| Weight | ||
| Payload (Weight) | 21,850 – 28,160 kg | 48,171 – 62,082 lb |
| Tare Weight | 2,150 – 2,220 kg | 4,740 – 4,894 lb |
| Max Gross Weight | 24,000 – 30,480 kg | 52,911 – 67,197 lb |
| Internal | ||
| Internal Length | 5.898 m | 19'4" |
| Internal Width | 2.352 m | 7'9" |
| Internal Height | 2.392 m | 7'10" |
| External | ||
| External Length | 6.058 m | 19'10½" |
| External Width | 2.438 m | 8'0" |
| External Height | 2.591 m | 8'6" |
| Door | ||
| Door Opening Width | 2.340 m | 7'8" |
| Door Opening Height | 2.280 m | 7'6" |
| Features | ||
| Lashing Rings (Rails) | 5 per rail × 2, cap. 2,000 kg each | — |
| Lashing Rings (Posts) | 3 per corner post, cap. 1,500 kg each | — |
* Garment hanger bars, forklift pockets, and gooseneck tunnels are optional. Contact your local ONS representative for availability.
